Outdoor Ashtray Trash Bin Design | Cnc DXF files for plasma cutting | Digital Download

Digital download — no physical item.

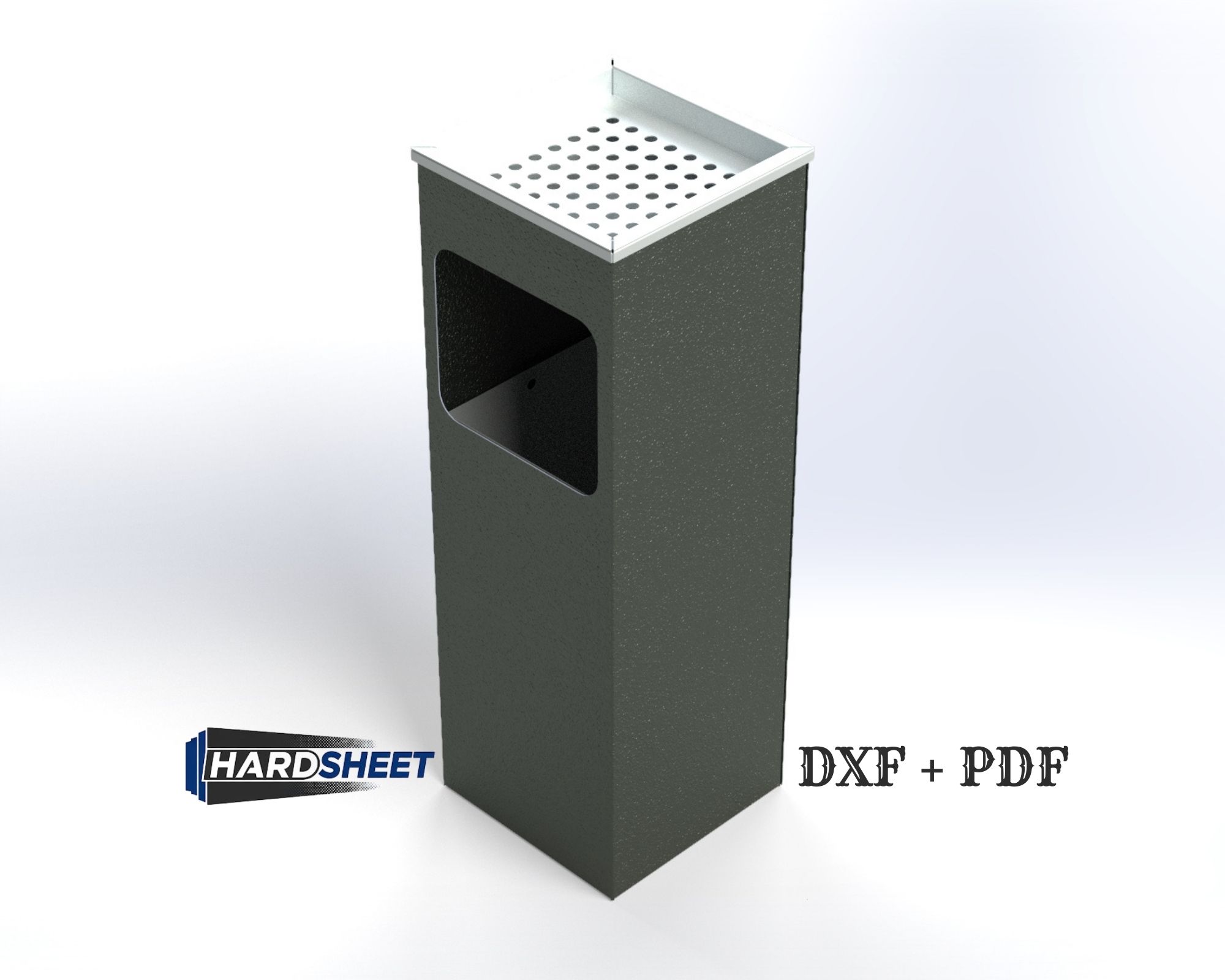

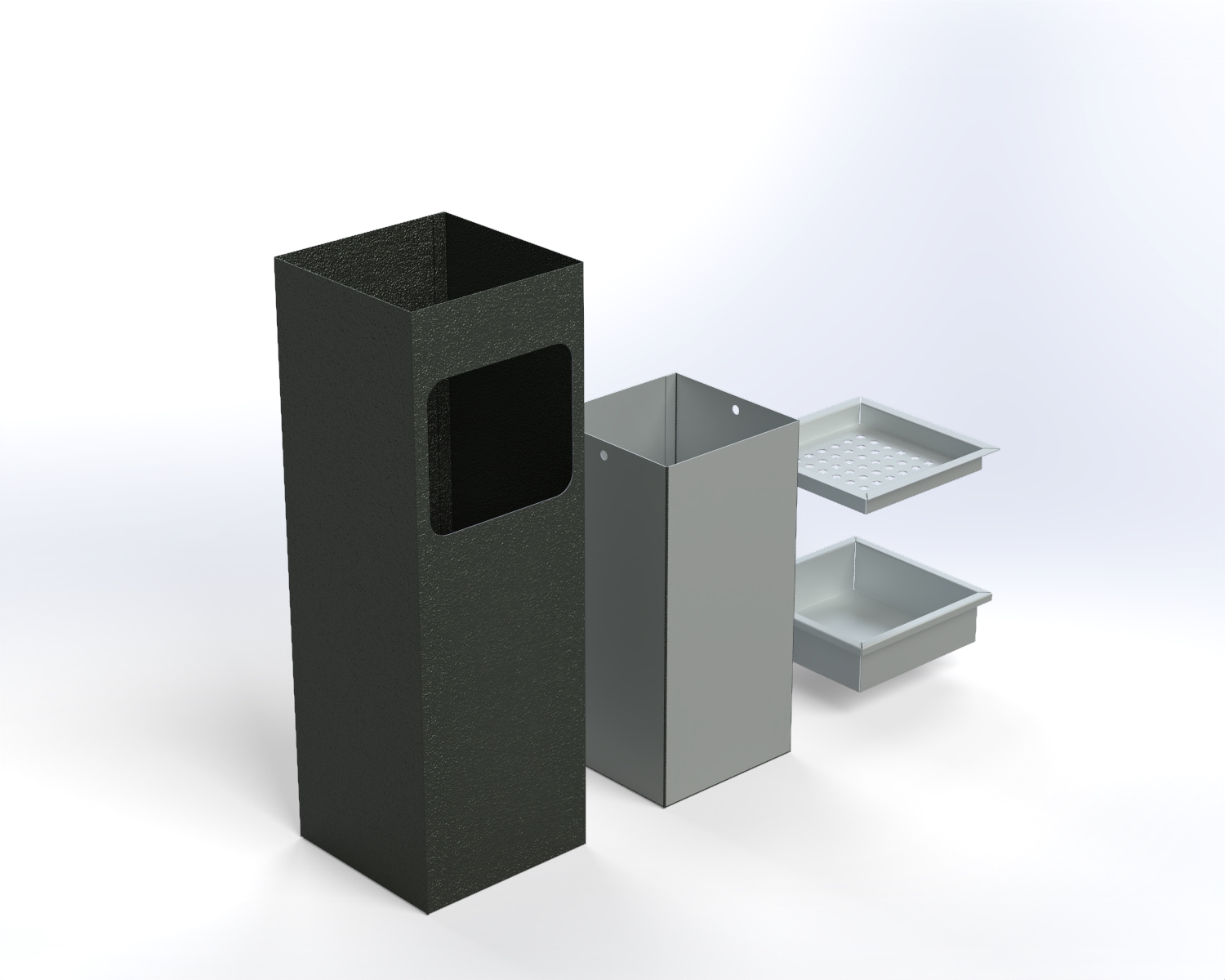

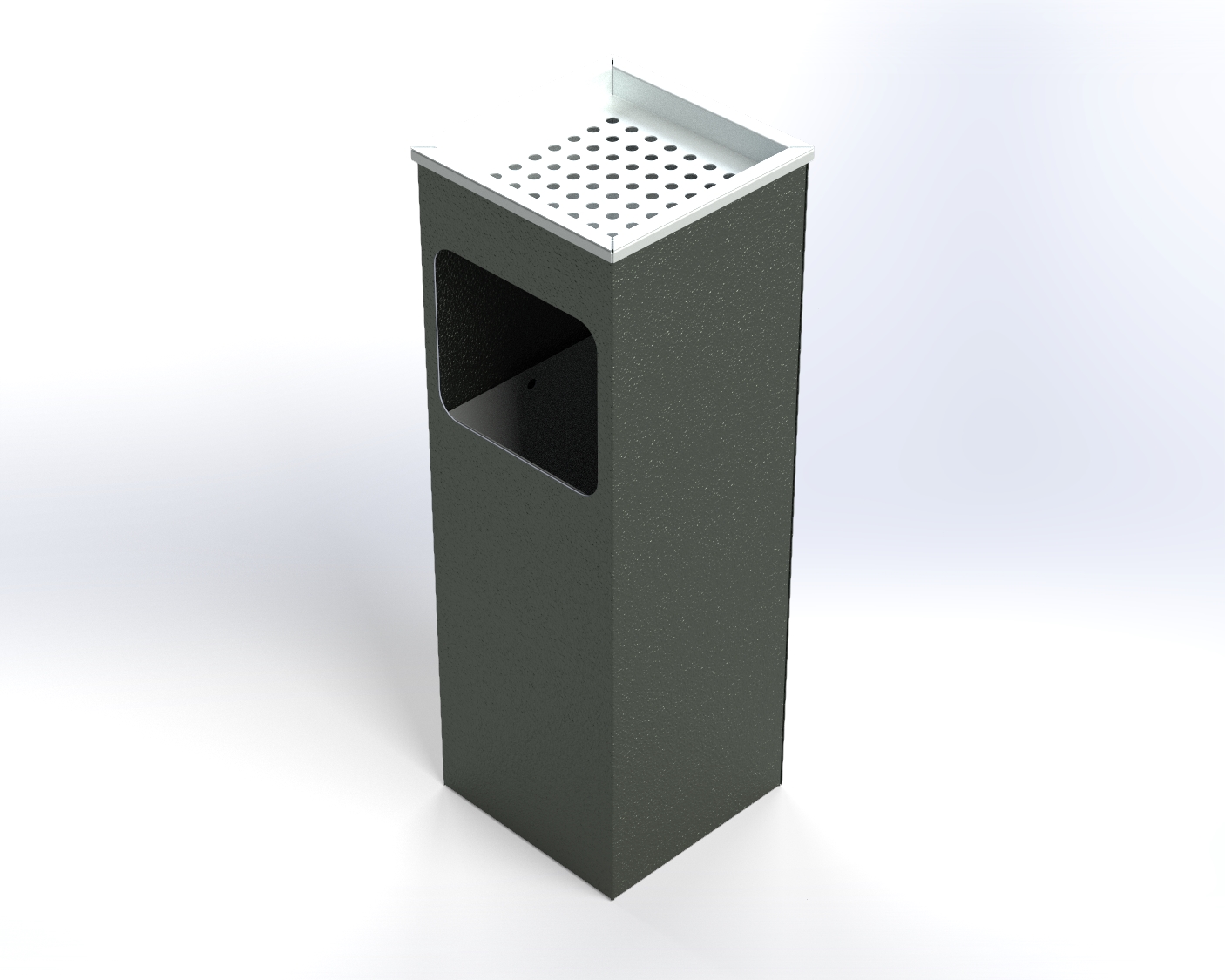

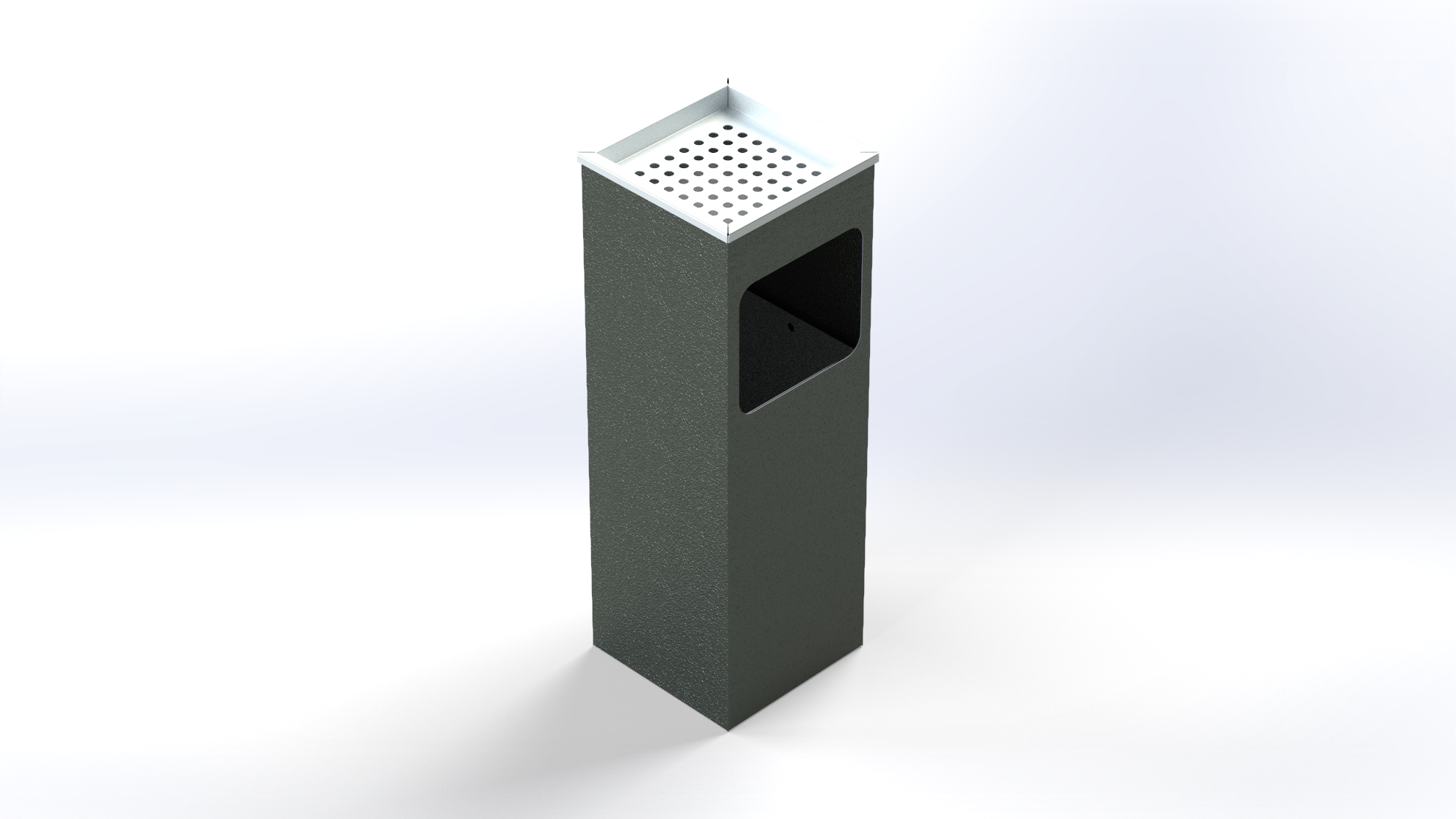

Build a clean, modern outdoor/indoor cigarette ashtray trash bin from 1 mm sheet metal. This pack includes DXF + PDF so you can cut on CNC laser, plasma, or waterjet and fabricate quickly for workshops, factories, cafés, patios, and smoker areas.

Finished size

•Width/Depth: 200 mm x 200 mm

•Height: 600 mm

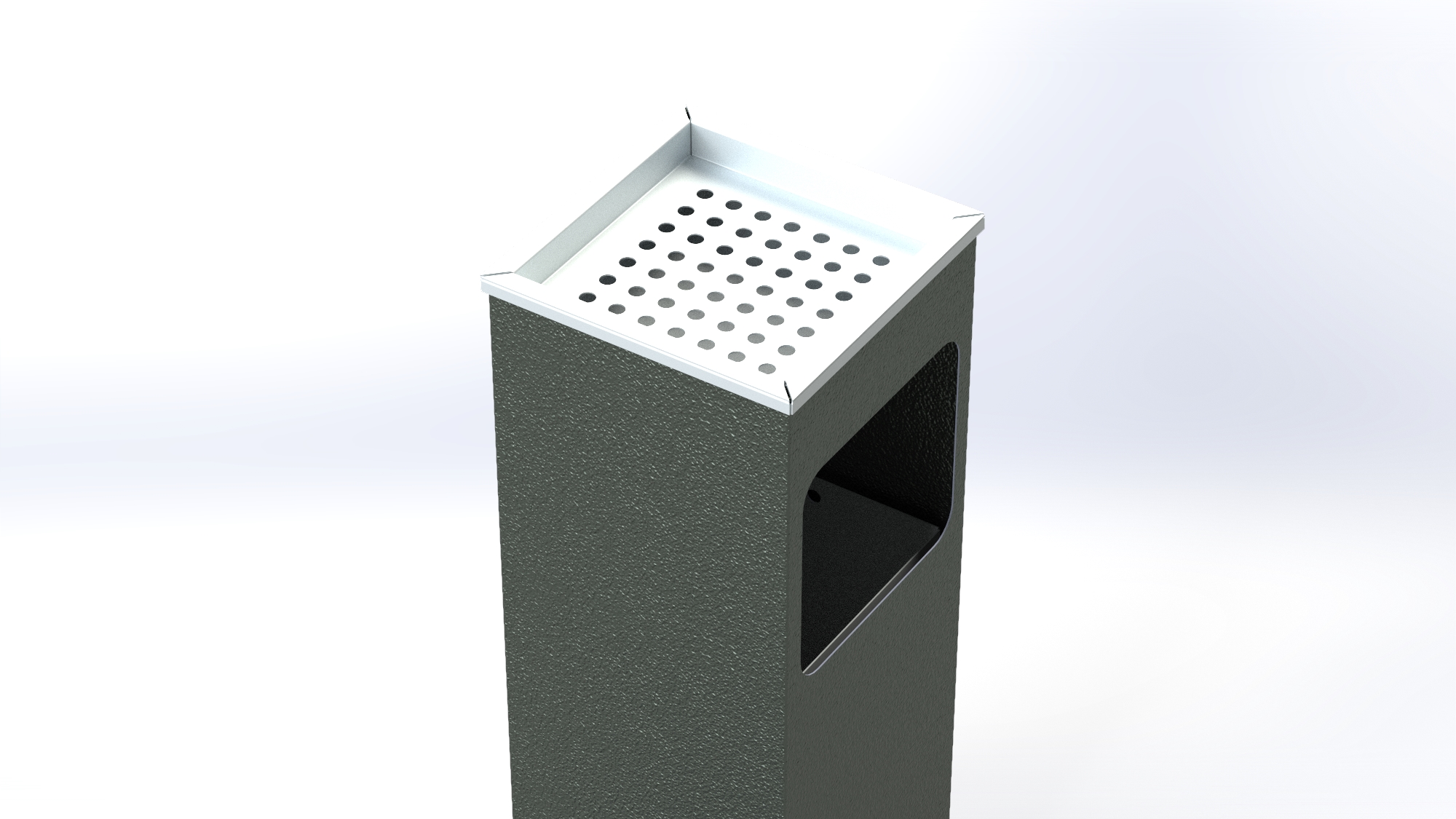

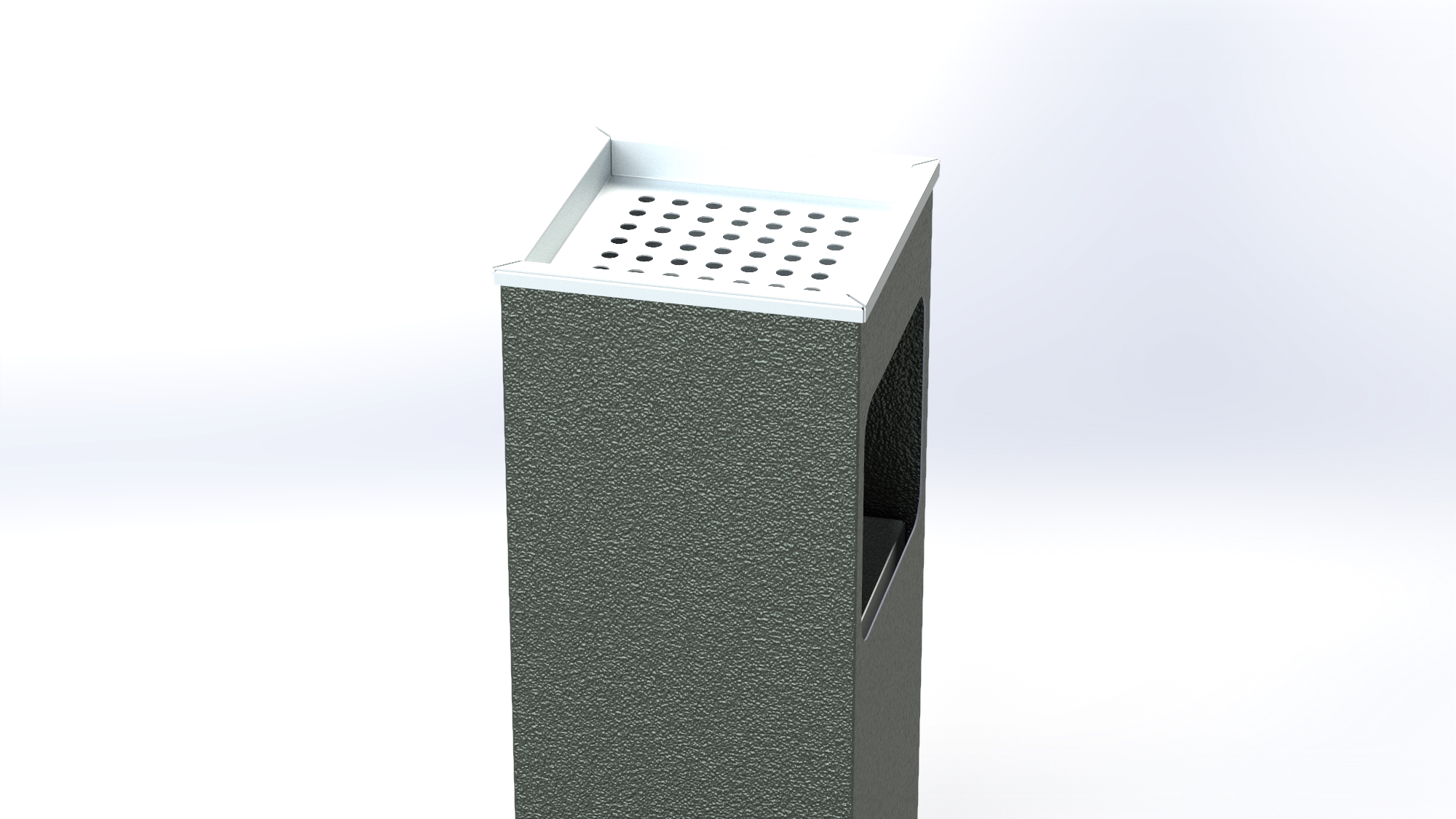

•Top: perforated ashtray panel with side guard for safe butt disposal.

Files included

•DXF: cut-ready vector

•PDF: dimensioned drawing/printable plan

Recommended process

•Cut from 1 mm steel sheet (scale to your material if needed).

•Bend and weld/rivet per your shop preference.

•Deburr, then powder-coat or paint.

Machine & software compatibility

•Works with most CAM/CAD and controllers that accept DXF.

•Suitable for laser, plasma, waterjet, punch (adjust pierce/kerf).

Notes

•Check/adjust kerf, bend allowance, and hole lead-ins for your machine.

•Test cut a small piece before full production.

•You may sell the physical items you make; reselling or sharing the files is not permitted.
