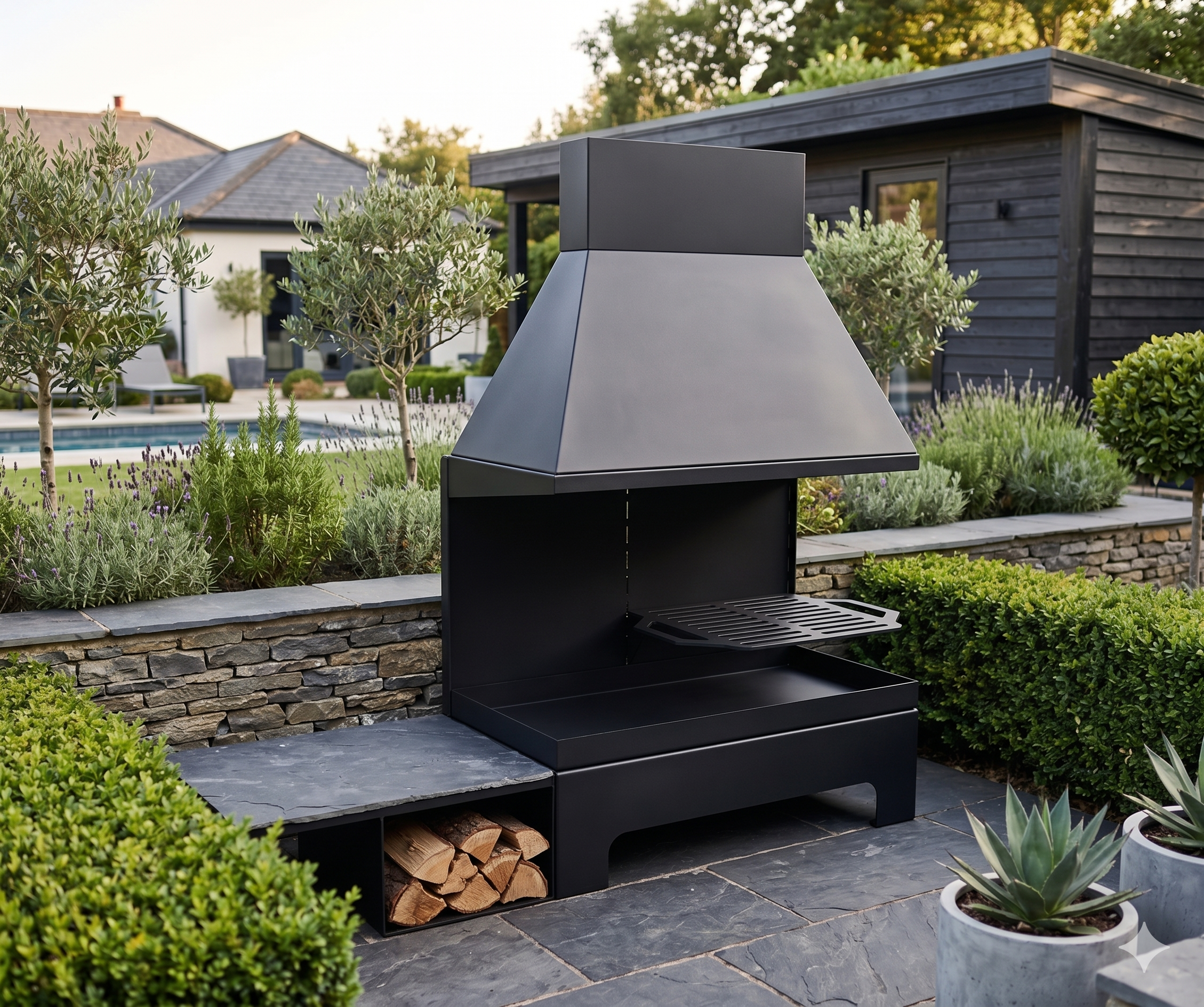

Create your own modern outdoor fireplace and BBQ grill with this professionally designed DXF file package.

Designed from 3 mm (0.118”) steel sheet, this versatile outdoor unit functions as both a fire pit/outdoor fireplace and a BBQ grill. The adjustable cooking grate can be moved up or down to control cooking temperature and distance from the fire.

Features

* Modern outdoor fireplace design
* Functions as both a fire pit and BBQ grill
* Adjustable grill height
* Designed for fabrication from 3 mm (0.118”) steel sheet
* Welded assembly required
* Suitable for CNC plasma, laser, and waterjet cutting
* Clean and fabrication-ready DXF files

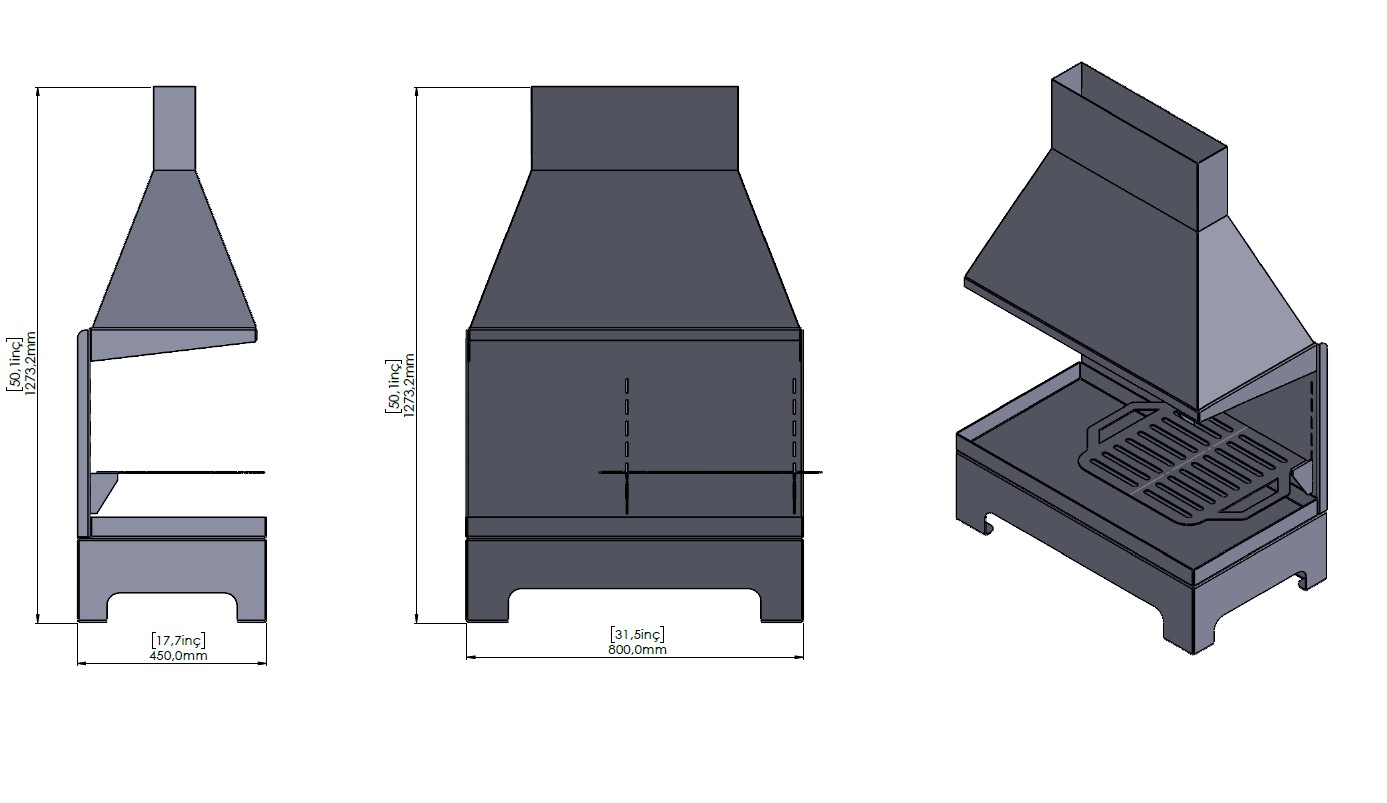

Finished Dimensions

* Height: 1273 mm (50.12”)
* Width: 800 mm (31.50”)
* Depth: 450 mm (17.72”)

What’s Included

* DXF cutting files
* Ready-to-cut digital files for CNC machines
* Exploded assembly reference

Important Information

This is a DIGITAL DOWNLOAD ONLY.

No physical product will be shipped.

You will receive digital DXF files that allow you to manufacture the fireplace yourself using CNC cutting equipment.

Please ensure that your machine, software, and material specifications are compatible before purchasing.

Due to the digital nature of this product, returns and exchanges are not accepted.

Perfect for metal fabricators, DIY enthusiasts, outdoor kitchen projects, backyard entertaining areas, villa gardens, patios, and custom BBQ installations.
